Description

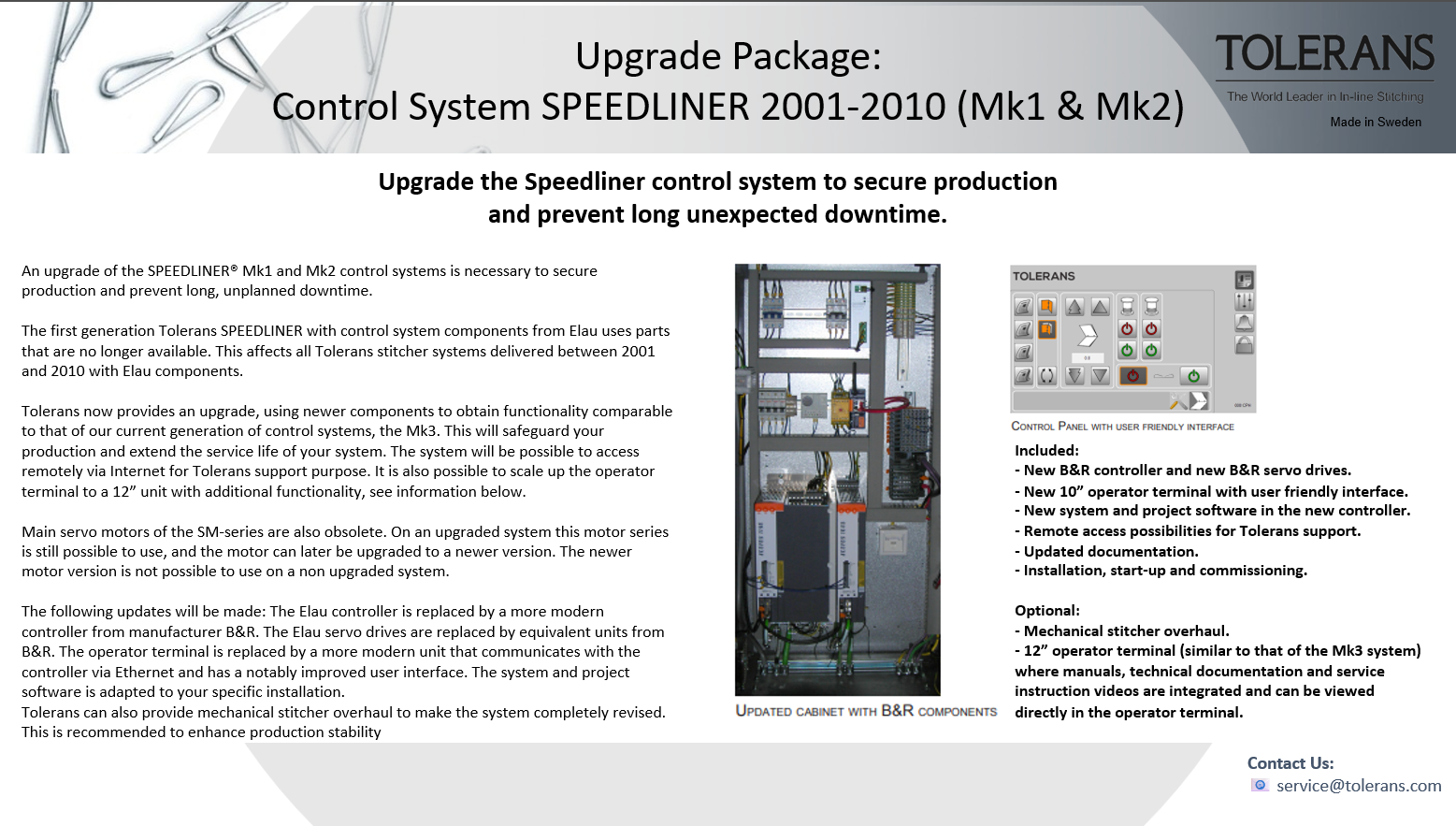

An upgrade of the SPEEDLINER® Mk1 and Mk2 control systems is necessary to secure production and prevent long, unplanned downtime.
The first generation Tolerans SPEEDLINER with control system components from Elau uses parts that are no longer available.
This affects all Tolerans stitcher systems delivered between 2001 and 2010 with Elau components.
Tolerans now provides an upgrade, using newer components to obtain functionality comparable to that of our current generation of control systems, the Mk3.
This will safeguard your production and extend the service life of your system. The system will be possible to access remotely via Internet for Tolerans support purpose. It is also possible to scale up the operator terminal to a 12” unit with additional functionality, see information below.
Main servo motors of the SM-series are also obsolete. On an upgraded system this motor series is still possible to use and the motor can later be upgraded to a newer version. The newer motor
version is not possible to use on a non upgraded system.
The following updates will be made: The Elau controller is replaced by a more modern controller from manufacturer B&R. The Elau servo drives are replaced by equivalent units from
B&R. The operator terminal is replaced by a more modern unit that communicates with the controller via Ethernet and has a notably improved user interface. The system and project
software is adapted to your specific installation.
Tolerans can also provide mechanical stitcher overhaul to make the system completely revised.
This is recommended to enhance production stability
