Feedingbox Wear Part Kit 100

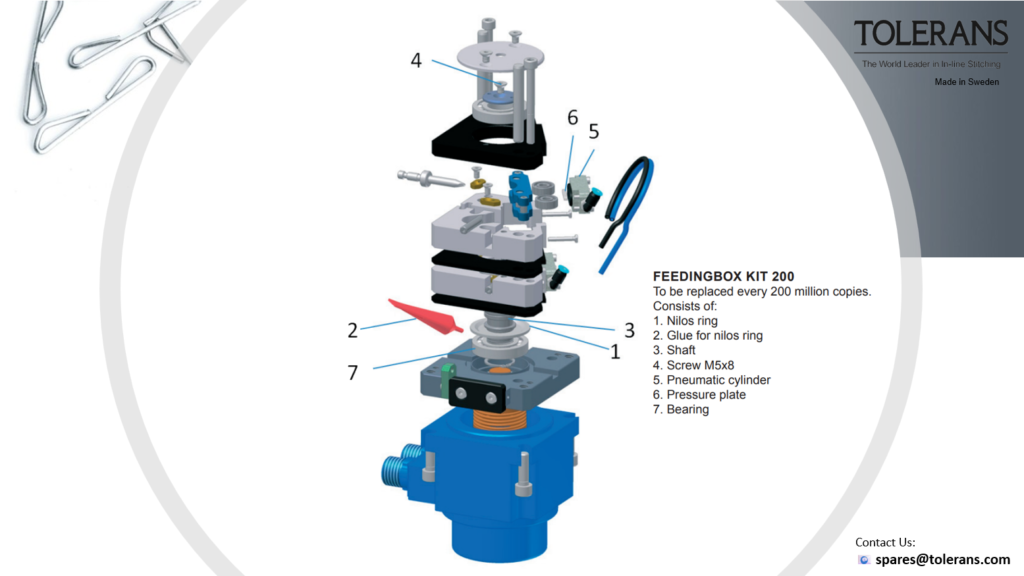

Feedingbox Wear Part Kit 200

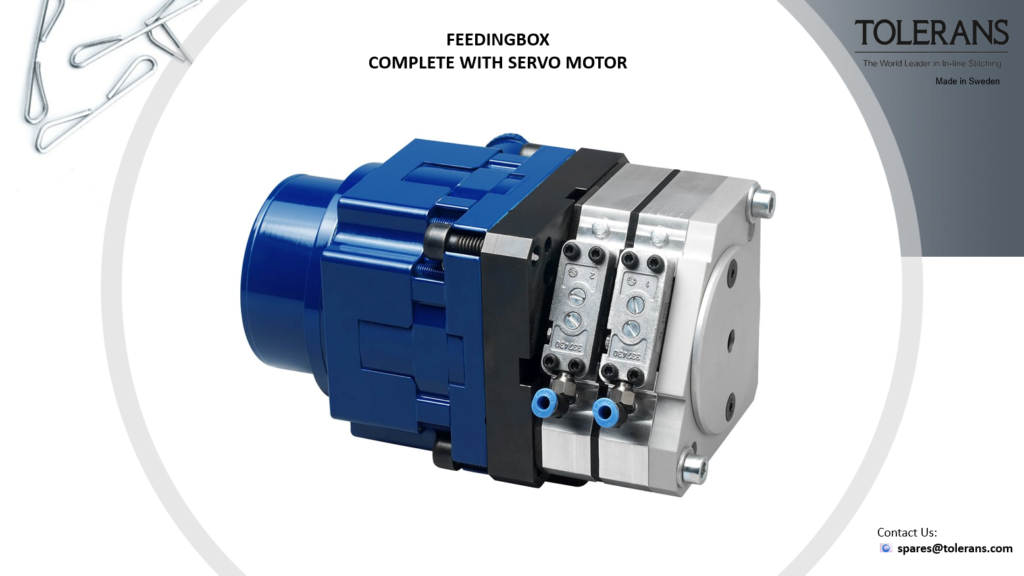

FEEDINGBOX

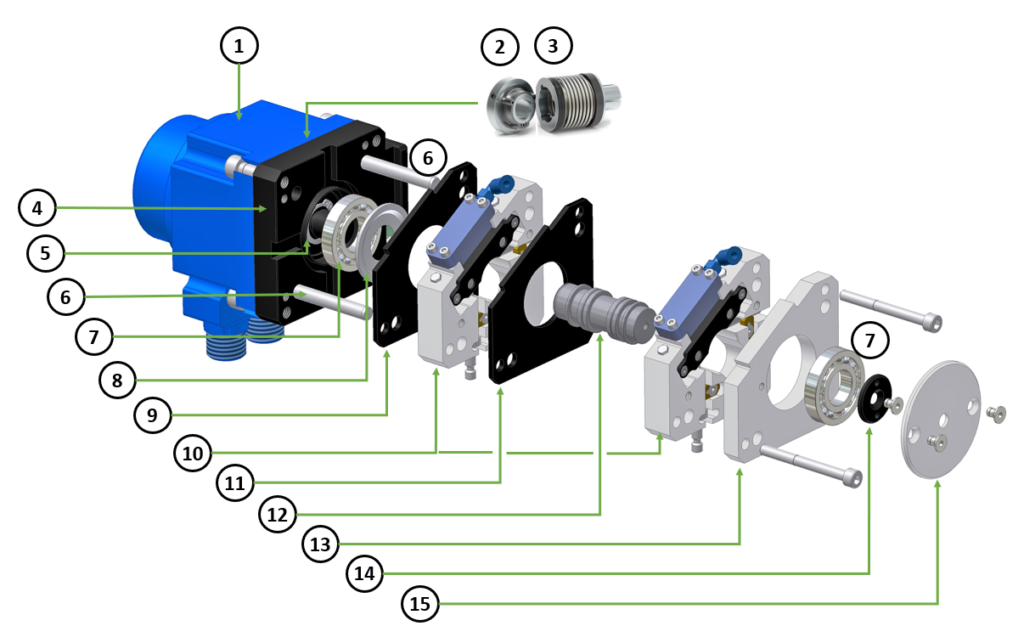

1. Servomotor
2. Coupling
3. Expander Copling
4. Motor Bracket
5. Spring Retaining Ring
6. Parallel Pin 8×60
7. Bearings
8. Nilos Ring
9. Intermediate Plate Lower
10. Wire Block Feedingbox
11. Intermediate Plate
12. Shaft
13. Cover
14. End Washer
15. Cover Disk

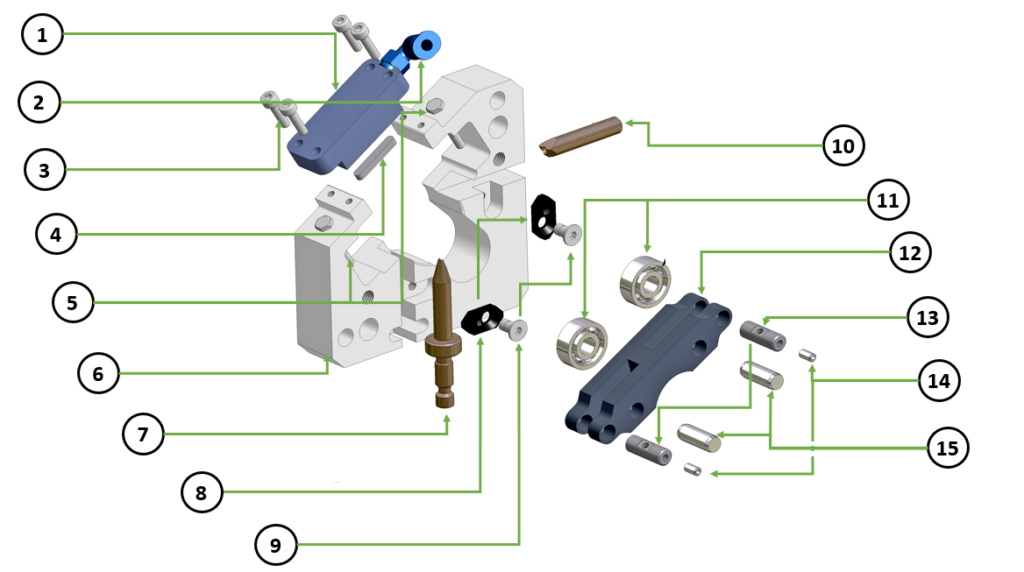

1. Pneumatic Cylinder
2. Push-In Fitting
3. Screws M3x12
4. Pressure Plate
5. Screws M3x20
6. Base Plate
7. Wire Inlet Pipe
8. Clamp
9. Screws M4x8
10. Wire Outlet Pipe
11. Bearing
12. Bearing Cage
13. Cylindrical Pin
14. Screw M3X6
15. Pin, cylindrical 6X16
